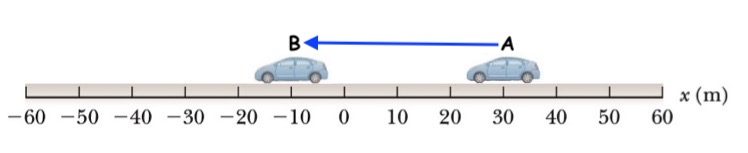

1. A car moves from `A` to `B` in `5.0` second as shown in the figure.
(a) What is the initial position, `x_i`, of this car?
(b) What is the final position, `x_f`, of this car?
(c) How many distance, `d`, this car moved?
(d) What is the displacement, `∆x`, of this car?
(e) What is the average speed of this car?
(f) What is the average velocity of this car?

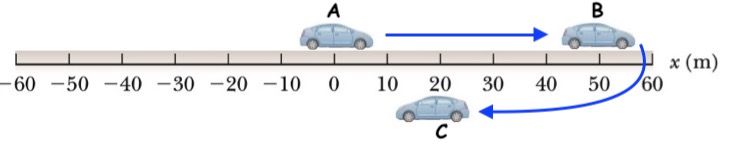

View Detail ... 2. A car moves from `A` to`B` in `10.0\ s`. It turns around at `B`, and then moves from `B` to `C` in `10.0\ s`. (Assume this car moves under a constant speed in each time intervals.)
a) Draw a position-time graph about this motion.
b) Find the velocity of this car from `A` to `B`
c) Find the velocity of this car from `B` to `C`
d) Find the average velocity of this car from `A` to `C`

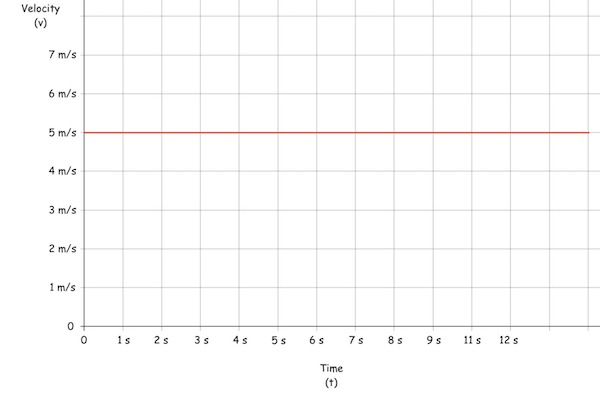

View Detail ... 3. Following graph shows the velocity of an object. Find the distance traveled of this object from `4th` second to `7th` second.

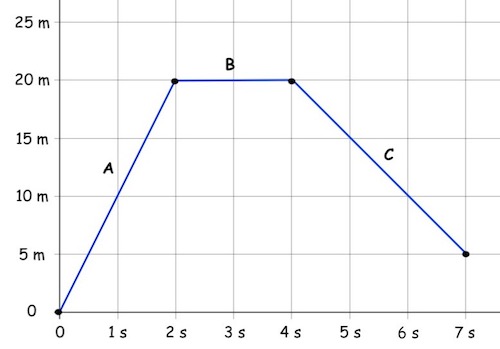

View Detail ... 4. The motion of an object is depicted in the following position-time graph. Determine the velocity during interval `A`, `B` and `C`.
View Detail ... 5. Car `A` and car `B` are `1000\ m` apart. Both cars start at the same time and drive toward each other. Car `A` travels at a rate of `7.0\ m//s` and car `B` travels `3.0\ m//s`. In how many seconds will the two cars meet?
View Detail ... 6. Car `A` is `500\ m` ahead of car `B`. Both cars are driving toward North. Car `A` travels with a speed of `3.0 \m//s` and car `B` travels with a speed of `5.0\ m//s`. How long will it take for car B to catch up with car A?
View Detail ... |
