1. What force is needed to accelerate a child on a sled( total mass `= 60.0 kg` ) at `1.25 m//s^2`?
View Detail ...

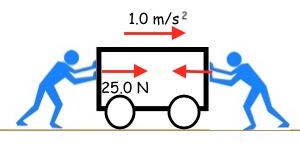

2. Two person push a `15.0`-`kg`-cart at same time from opposite side as shown below. When the left person uses `25.0\ N` force to push the box, the box is moving toward right with an acceleration of `1.00\ m//s^2`. What is the force push by the person on the right?
View Detail ...
3. How much tension must a rope withstand if it is used to accelerate a `100`-`kg` box vertically upward at `0.50\ m//s^2`. (use `g=-10\ m//s^2`)
View Detail ...
4. A 25.0-kg block is initially at rest on a horizontal surface. A horizontal force of 75.0 N is required to set the block in motion, after which a horizontal force of 60.0 N is required to keep the block moving with constant speed. Find (a) the coefficient of static friction and (b) the coefficient of kinetic friction between the block and the surface.
View Detail ...
5. Construct free-body diagrams for the various situations described below: a)An egg is free-falling from a nest in a tree. Neglect air resistance. Diagram the forces acting on the egg as it is falling. b)A flying squirrel is gliding (no wing flaps) from a tree to the ground at constant velocity. c)A rightward force is applied to a book in order to move it across a desk with a rightward acceleration. d)A 45° right-down-ward force is applied to a book in order to move it across a desk with a constant speed.
View Detail ...

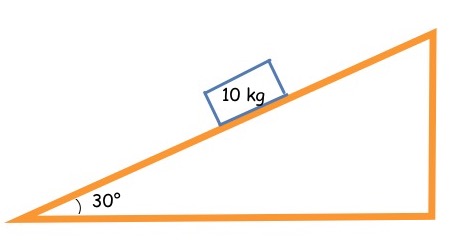

6. A `10`-`kg` box rests on the inclined plane shown below. a) Draw a free-body diagram of the box. b) Determine the friction force between the box and inclined plane.
View Detail ...
